UL 20940 PU Jacket Shielding Machine Tool Cable for Internal Wiring or External Interconnection of Electronic Equipment
Basic Info
Model NO. | UL 20940 |
Material Shape | Round Wire |
Range of Application | Electronic Equipment |
Certification | ISO9001, CE, CCC, RoHS |
Brand | Hwatek |
Transport Package | Rolled in Reels, Packed in Pallets. |
Specification | UL758 |
Trademark | Hwatek |
Origin | China |
HS Code | 8544492100 |
Production Capacity | 20km/Day |
Product Description
- Application: Internal wiring or external interconnection of electronic equipment
- Application standard: UL758, UL1581
- UL number: UL20940
- Product character:
- Rated temperature : 80ºC
- Rated Voltage: 600V, 1000V
- Technical parameter:
- Tinned or bare, stranded or single copper conductor
- PE or PP insulation
- Two or more single-core wire are twisted or cabling
- Spiral or braid shield with tinned or bare copper or Al-mylar wrapped shield
- PU jacket
- Constructure:
- Tiny conductor diameter has high flexibility
- Oil and heat resistance, anti-bending and abrasion
- Pass UL VW-1 and CSA FT1 vertical flame test
- Remark:optional Core wire number 2C-50C and shielding way.similar specifications can be designed according to customer requirements.
Product Number. Conductor Insulation Shield Jacket Max. Cond. Resistance (20ºC)
Ω/kmCores Size AWG NO./mm Conductor
Dia .
mmNom. Thickness
mmNom. Dia.
mmMaterial
Nom. Thickness mm Nom. Dia.
mmHT20940***008 4C 16 48/0.20 1.60 0.95 3.50 TC 1.0 10.9 140 HT20940***009 5C 16 48/0.20 1.60 0.95 3.50 11.8 140 HT20940***010 6C 16 48/0.20 1.60 0.95 3.50 13.3 223 HT20940***011 7C 16 48/0.20 1.60 0.95 3.50 13.3 223 HT20940***012 8C 16 48/0.20 1.60 0.95 3.50 14.6 223 HT20940***013 5C 16 48/0.20 1.60 0.95 3.50 11.8 140
Company Profiles:

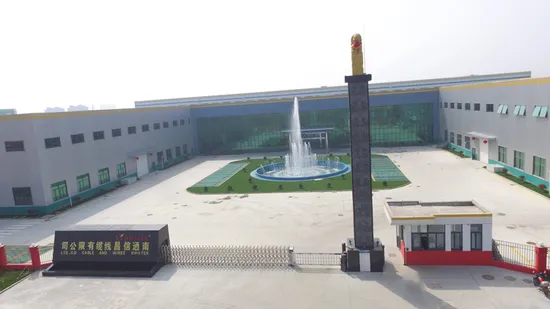

Founded in 2004 with 16 years of development, we Hwatek established our new plant Nantong Hwatek Wires & Cable in 2020. Located in Nantong City, Jiangsu Province, our new plant covers 34,000 square meters with 100 million investment.
We are dedicating to R&D and produce various wires and cables like industrial control, communication instruments, medical control, green energy EV and special wires and cables etc. OEM & ODM is also available.
Our Nantong Plant has passed ISO9001, ISO14001, IATF16949, ISO13485 quality system certification. All the ranges of our wires and cables are CCC, UL, CUL, CE, CSA ,TUV,DEKRA,IEC,CQC or ETL qualified. With the company principle 'Profession, Integrity, Eco Friendly and Win-win', we are equipped with a comprehensive sales network to serve customers in various fields around the world.
Frequently Asked Question:
1
Q:What can you supply? A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.2
Q: What are the certificates do you get? A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.3
Q:Can we get samples before ordering? A:Yes, we are willing to arrange samples for you.
4
Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
